No Head T Type 5tons 50m Boom Length Topless Tower Crane For Sell

Name: No Head T Type 5tons 50m Boom Length Topless Tower Crane For Sell
Brand: AVITT or others
Price: 36600 USD

Brand Name : AVITT or others

Model Number : QTZ50(PT5010)

Certification : CE, ISO, GOST, CU-TR

Place of Origin : China

MOQ : 1

Price : $36600-40300 per set

Payment Terms : TT, LC

Supply Ability : 30 sets per month

Delivery Time : 15 days after receiving the deposit or origin LC

Packaging Details : Naked packing, 3*40’HQ+1*20'GP containers.

Application : Buildings and projects

Type : Fixed with tower head

Max. load : 5t

Jib length : 50m

Tip. load : 1.0t

Power supply : 380V/50Hz or according to client's requirements

Mast section : 1.6*1.6*2.5m

Main chord : 135*10mm (square tube)

Contact Now

No Head T Type 5tons 50m Boom Length Topless Tower Crane For Sell

Performance parameters of PT5010:
• Max. jib length: 50m;
• Max. lifting capacity: 5t;
• Max. hoisting capacity at jib tip:1t;
• Rated lifting moment: 500 Kn.m;
• Max. freestanding height: 30m; Max. working height of anchored crane: 120m;

Specification

Rated lifting moment (kN.m)		500
Lifting height (m)		Rope fall	Free-standing stationary crane		Anchored crane
		α＝2	30		120
		α＝4	30		120
Working radius (m)		Max. working radius		50
		Min. working radius		3
Max. lifting capacity (t)		5
Hoisting mechanism	Rope fall	α＝2		α＝4
	Speed (m/min)	65/32/7.0		32/16/3.5
	Lifting weight (t)	1	2.5	2.5		5
	Power (kW)	15/15/4
Tolleying mechanism		Speed (m/min)		0.7/0.35
		Power (kW)		3.7
Slewing mechanism		Speed (r/min)		0.4
		Power (kW)		4

Competitive Advantage:
1. Rapid response to any inquiry and 24 hours on-line service.
2. Competitive price which directly work with manufacturer.
3. Professional inspection department to guarantee quality.
4. If you need, engineers will go to the construction site for guiding the installation and test-running.
5. Factory visit is welcomed.

Safety Devices of the Topless Tower Crane
1. 3 obstacle lights
2. Height limiter
3. Slewing limiter
4. Range/ trolley limiter
5. Weight limiter
6. Moment limiter
7. Anemometer and block box(optional)

We value our customers; We value our customers’ customers
HYCM Focus on superior products (tower crane) and perfect service

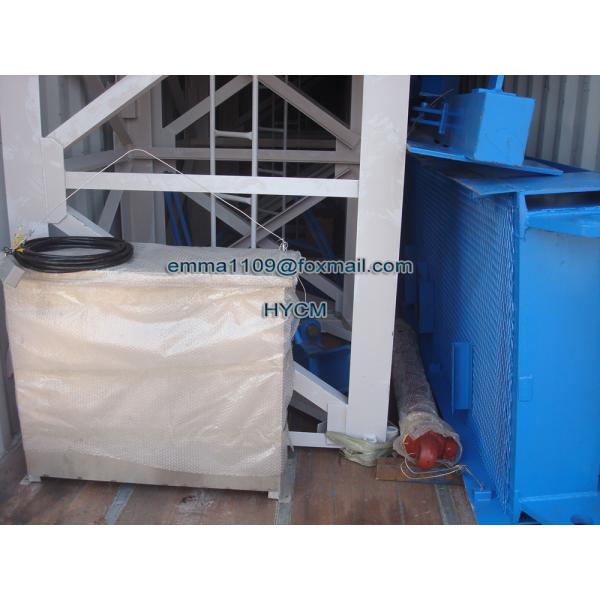

Loading Containers:

No Head T Type 5tons 50m Boom Length Topless Tower Crane For Sell
