Tower Head Tower Crane 60 meter Topkit qtz125 Construction Cranestower

Tower Head Tower Crane 60 meter Topkit qtz125 Construction Cranestower

Brand Name : HYCM
Model Number : QTZ125(6018) Tower Crane
Certification : CE, ISO, GOST, CU-TR
Place of Origin : China
MOQ : 1 set
Price : $101000-115000 per set
Payment Terms : Western Union, L/C, T/T
Supply Ability : 20 sets per month
Delivery Time : 20 days after receiving the deposit or origin LC
Packaging Details : Naked packing, 6*40’HQ or 7*40;HQ containers.
Condition : 100% New
Application : Buildings and projects
Type : Fixed with tower head
Max. load : 10 t
Jib length : 60 m
Tip. load : 1.8 t
Power supply : 380V/50Hz or according to client's requirements
Mast section : 1.835*1.835*2.5m or 2*2*3m
Electric box : Schneider
Power supply : 380V/50Hz, 415V/50Hz, 220V/50Hz or according to clients need
Contact Now

Tower Head Tower Crane 60 meter Topkit qtz125 Construction Cranestower


Features

  • QTZ125(6018) fixed tower crane in Madagascar
  • Fixed / stationary tower crane
  • Max. load: 10ton
  • Tip load: 1.8ton
  • Jib length: 69m
  • CE, ISO, GOST, CU-TR certificates


Specification

ModelQTZ125(6018)
Working Radius (m)60
Max. Load Capactiy (T)10
Tip Load (T)1.8
Free Height Under Hook (m)50
Max. Height with anchorages (m)180
Mast Section dimension (m)1.835×1.835×2.5 or 2*2*3
Hoisting MechanismSpeed (m/min)0-100 0-50
Motor power (kw)45kw
Slewing MechanismSpeed (r/min)0-0.6
Motor power (kw)5.5×2
Trolleying MechanismSpeed (m/min)0-60
Motor power (kw)5.5
Jacking-up SystemSpeed (m/min)0.4
Motor power (kw)5.5
Total Power (kw)61.5 (not includes jacking-up system)
Power Supply380V/50Hz
Base typeWell shaped base/cross base/ base with ballast
No. of containers7 x 40’HQs

Optional parts
(if you need them, please let me know in advance)

1) Anemometer
2) Air condition in cabin
3) Block box
4) Remote control


The process features

1): Automatic submerged arc welding is adopted in the main section limbs and chord boom. It has high thermal efficiency, high penetration, high production efficiency, while reducing the pores and crack defects, increases the weld strength and the beautiful appearance.
2): We adopt carbon dioxide gas welding; it has heat concentrated, a small welding line, high strength and resistance to rust and crack. it can reduce tress and deformation, it has high strength and resistance to rust and crack.
3): Shot blasting is used for masts to strength the hardness of steel surface; enhance the paint adhesion and prolonging its life


Why choose us

1. A professional tower crane supplier in China with 15 years experience

2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications

3. Hydraulic self-climbing mechanism

4. Variable-frequency slewing mechanism

5. Varialbe-speed frequency PLC control System

6. Operation data display screen and Safety monitoring system (Black Box)

7. Various safety devices



Pictures


China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

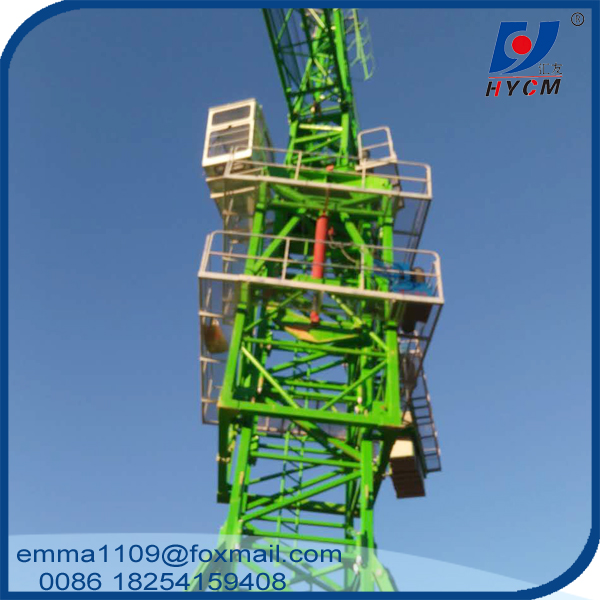

Tower Head Tower Crane 60 meter Topkit qtz125 Construction Cranestower Images
